Racerstar 3650 Sensorless Brushless Waterproof Motor 60A ESC Set For 1/10 Monster 1:10 Truck Truggy Cars

Racerstar 3650 Sensorless Brushless Waterproof Motor 60A ESC Set For 1/10 Monster 1:10 Truck Truggy Cars
  • Продавецwww.wohndeev.info
  • Список ценUS $40.49piece
  • Продажная ценаUS $40.49piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (265)

Oписание продукта

RM1641845738615618

Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck



Package included :

Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC *1

Hobbywing EzRun   SL 4274 2200KV Sensorless Brushless  Motor * 1

Hobbywing  LED Programing *1



aeProduct.getSubject()


ESC   Specification :

Model :  EZRUN-MAX8-V3

Continuous / peak current : 150A / 950A

Support motor type : sensorless brushless motor,

Applicable models : 1/8 RC Car / truck / SUV

Applicable motor KV :  When 4S lithium or NiMH Section 12: 4274 motor, KV  3000;
When using 6S lithium or NiMH Section 18: 4274 motor, KV  2400;

The number of cells  : 9-18 Cells NiMH, 3-6S Lipo

BEC output : 6V / 7.2V adjustable, continuous current 6A (switching power mode)

Dimensions :  59.8 (L) x 48 (width) x 36.8 (high)

Weight :174 g

Fans take power acquired from the built-in BEC of 6V or 7.2V stable

Parameter setting interface and the interface to the common fan


Features :

1. Multiple real-time overload

2. Waterproof ,suit for any situation weather .

3.Built in BEC for 1/8 th Car   ,Max Output Current  15A ,Max output  Voltage 6V/7.2V    ,easy driving and  high voltage and power steering servos

4.exceed eletronic switch 5000 times .

5. Compatibility TRAXXAS and HPI etc 1/8 th monster truck  Motor Plug

6. For Traxxas E-Revo E-Maxx Hpi Savage Thunder Tigher E-Mta 1/8th Truck.



aeProduct.getSubject()

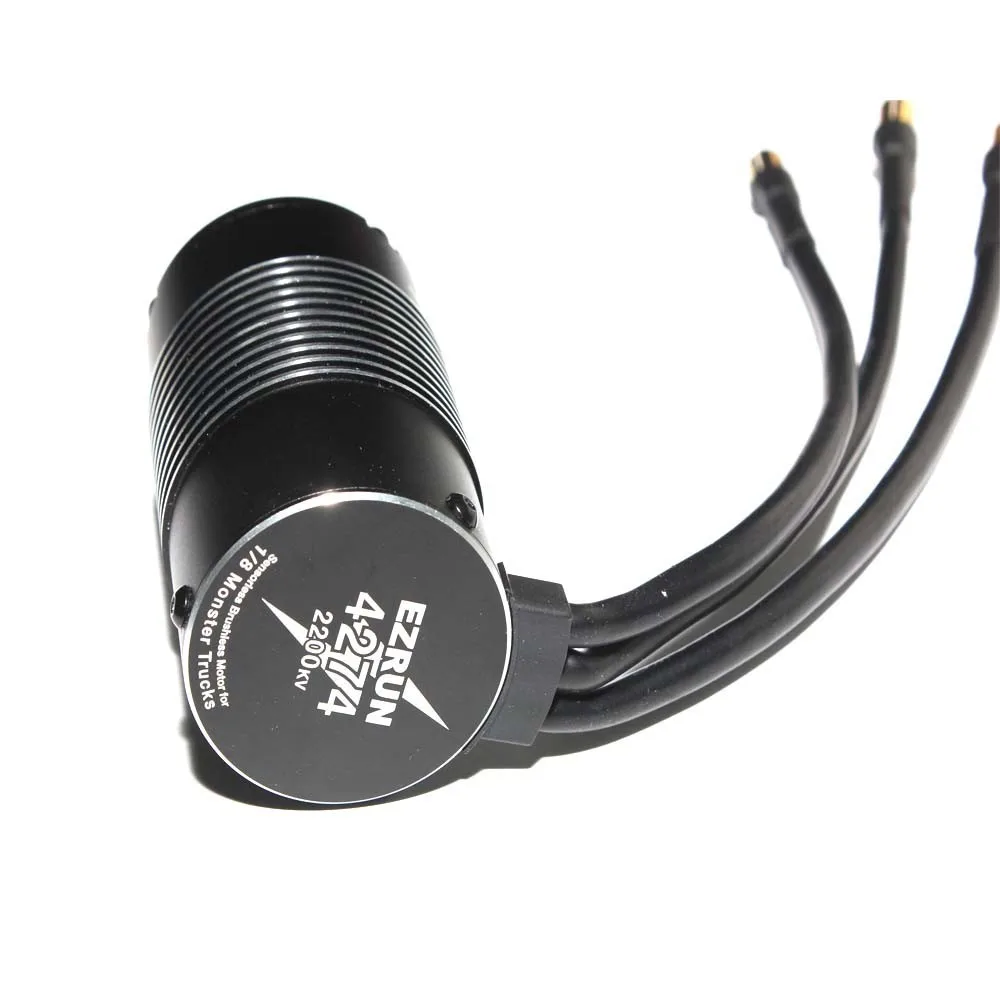

Motor Specifictions:



Model : EZRUN-4274SL -2200

KV :2200KV

Resistance (Ω): 0.0058

No-load current (A): 5A

Maximum output power (W):  3000W

The maximum output power point current (A) : 120A

The outer diameter and length (mm):  Φ = 42
  L = 74

Exposed shaft diameter and shaft length (mm) : Φ = 5
  L = 18.5

Support Lipo :  2-6S

Weight :418g

Uses : 1/8 Monster Truck / RC Car
