20pc tags DC12V Door&gate Access Control system Electronic integrated RFID Door Rim lock w/ 1000 users RFID reader for intercom

20pc tags DC12V Door&gate Access Control system Electronic integrated RFID Door Rim lock w/ 1000 users RFID reader for intercom
  • Продавецwww.wohndeev.info
  • Список ценUS $21.49piece
  • Продажная ценаUS $21.49piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (303)

Oписание продукта

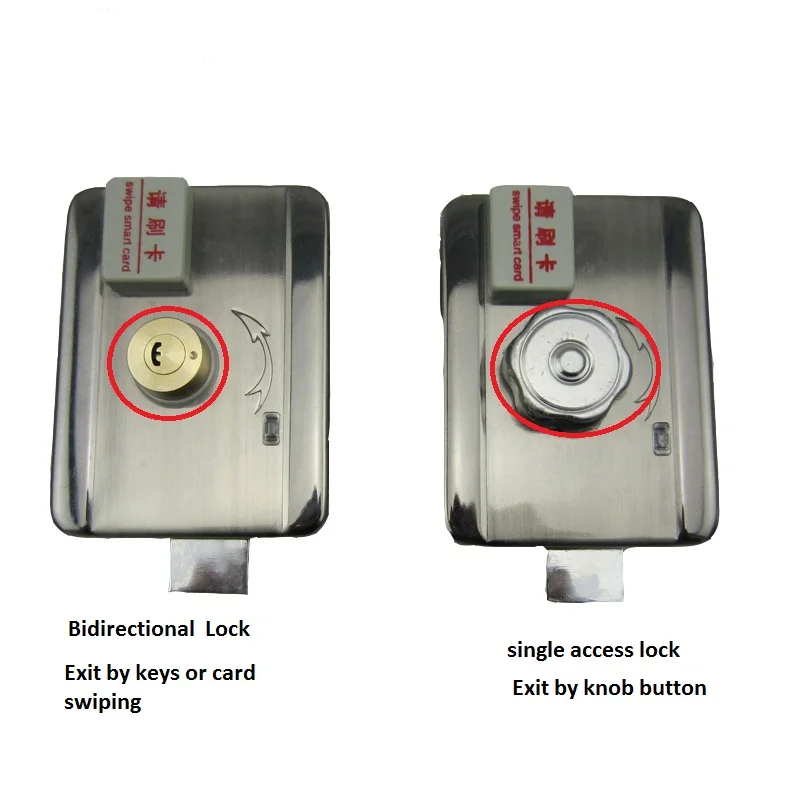

Package contents: a unit of lock(bidiretional access version or single access version)+15pcs pvc 13.56MHZ cards +key+master card+remote control(no battery included)



​13.56MHZ reader lock is anti-copy; and it is safer

dee

Notes:  this package is 15pcs keyfobs included;



​if the buyer does not confirm the access version within 5 days, we will send with single access version

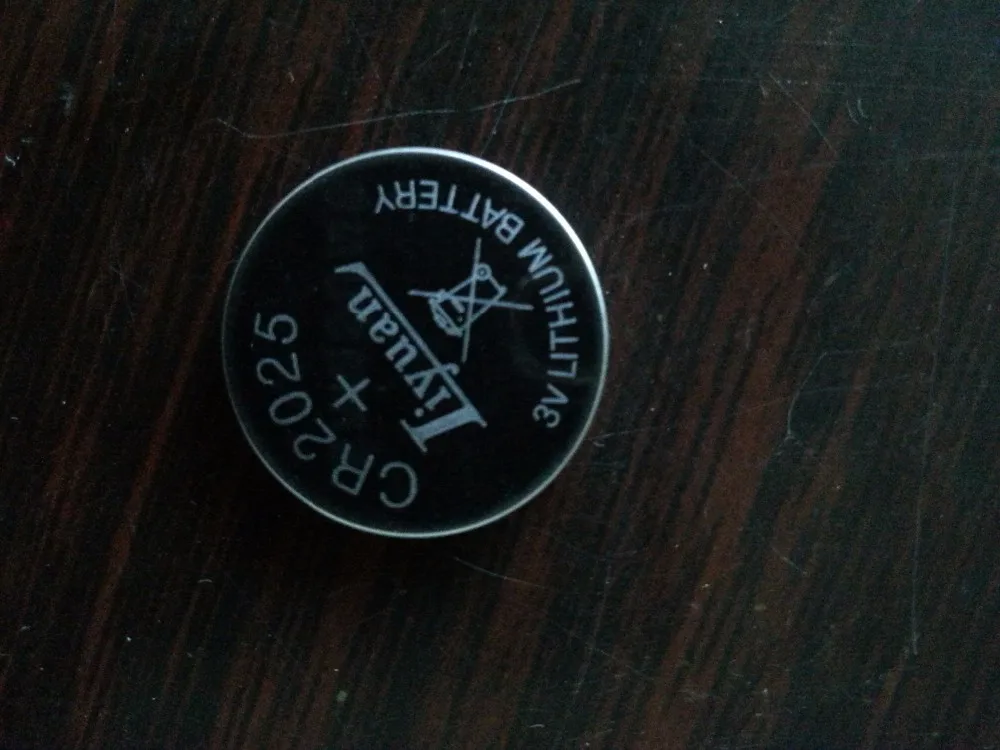

Battery CR2025 inside of this remote control will be taken out before delivery as battery is very sensitive for shipping; this kind of battery is easy to be found locally.In compensation, we will offer 5 more keybobs each package.

20160916_18112520160916_181146

lock7lock9lock14lock13lock6lock10lock11lock12







1314

Remote controller instructions:


Programming code: 9999
When enter the programming status, please press *9999#
When this is done, the LED light is green;
1.Adding extra card/tag
Press 1# and swipe the card, then there is sound di di di; card registered successfully; or press 2# and put in the last six digits of the tag;

2.Deleting card/tag

Press 4# and swipe the card; card deleted successfully;

Or press 5# and then put in the last 6 digits of the card and press #

Or to delete all users, press 90#90#;

3.Changing programming code:

Press 0+#+new code#new code#(the new code is any digits from 1000 to 999999999

4.Changing lock opening code:

the original code is 8888; and if the user press #8888#, the lock will open.

Press 92+new code+#(the code should be any digits from 1000 to 999999999)

5.Speaker operation:

Press 97+# to run the speaker and press98+# to close the speaker;


After all programming, please press # to log off the programming status.


2316
