Oписание продукта

WIRED 9" TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!
Unlock via Code, RFID cards, Remote control and unlock button









This Hard-wired Video Door phone Intercom System consists of two 9\'\' color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

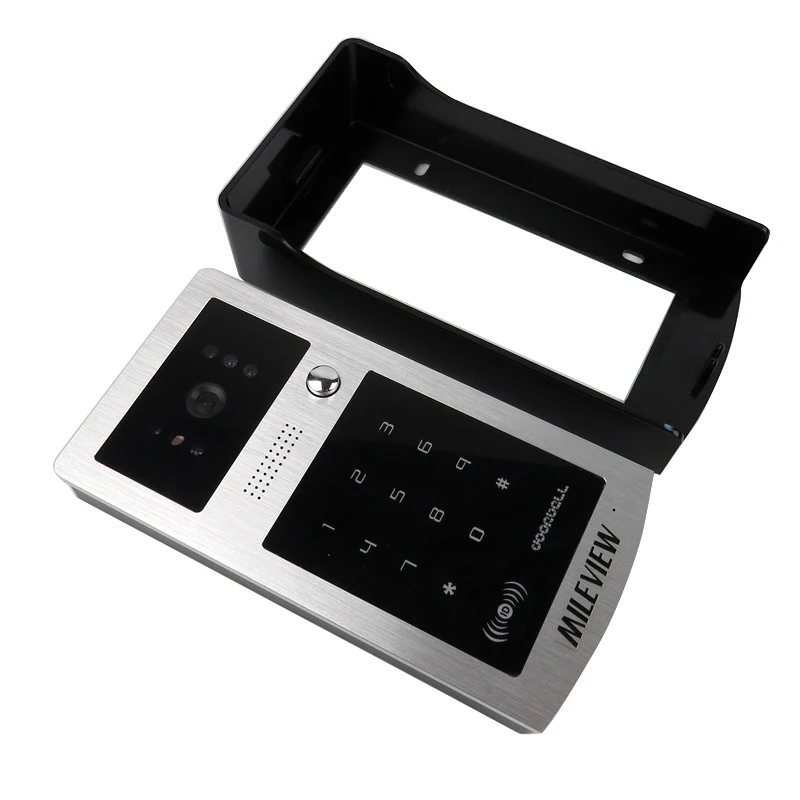

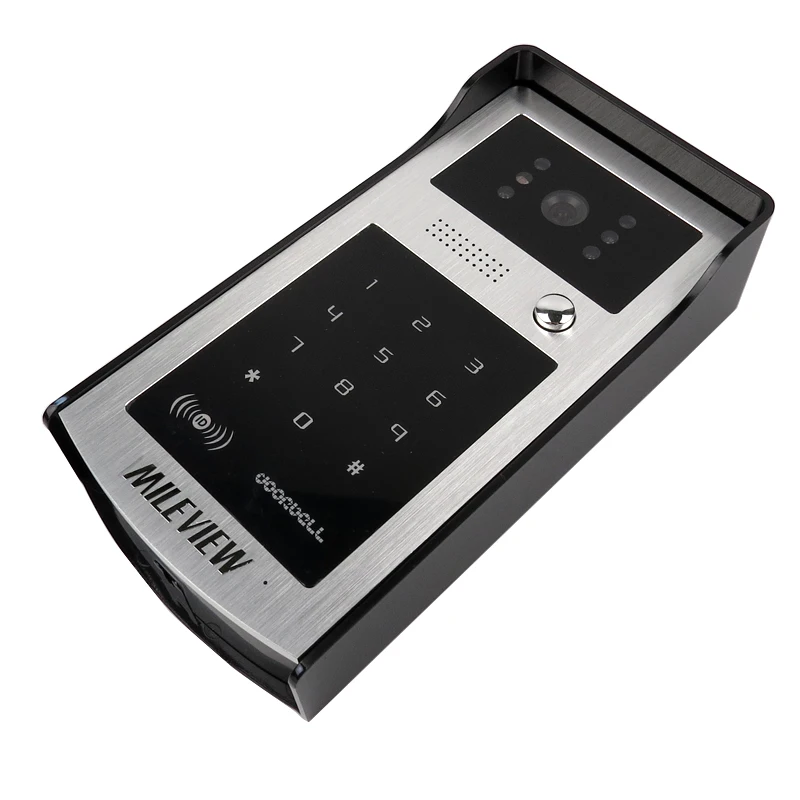

This new released outdoor unit has a code keypad, it supports to unlock via password or RFID card, very convenient to unlock. Besides, it is fully waterproof, supports outdoor working. with 6 LED for night vision.






Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.
  • The TFT 9 inch digital color LCD for monitor.
  • Clear night-viewing , 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • Additional monitor available up to 6(optional) and 3 outdoor cameras at most.
  • TFT color screen with low power consumption, no radiation and high definition.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable.
  • Comes with 10 RFID keyfobs, a push release button switch.
  • Support maximum 500 id keyfobs or cards.
  • Supports one password, you can unlock via code or RFID card
  • Fully waterpoof, support outdoor working.
  • 25-chord melody rings for option.
  • Cabling: 4-core connection cable
  • 700 TVL CMOS Camera.
  • Supports communication between two monitors.



Details

998 details988-4





998-1998-2









IDS-detailsIDS-4

IDS-S-1IDS-S-2







Remote Control

When you want to go out, you just need to click this Remote control, then you can go out:

Power supply



This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.









Application





Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m



Specification

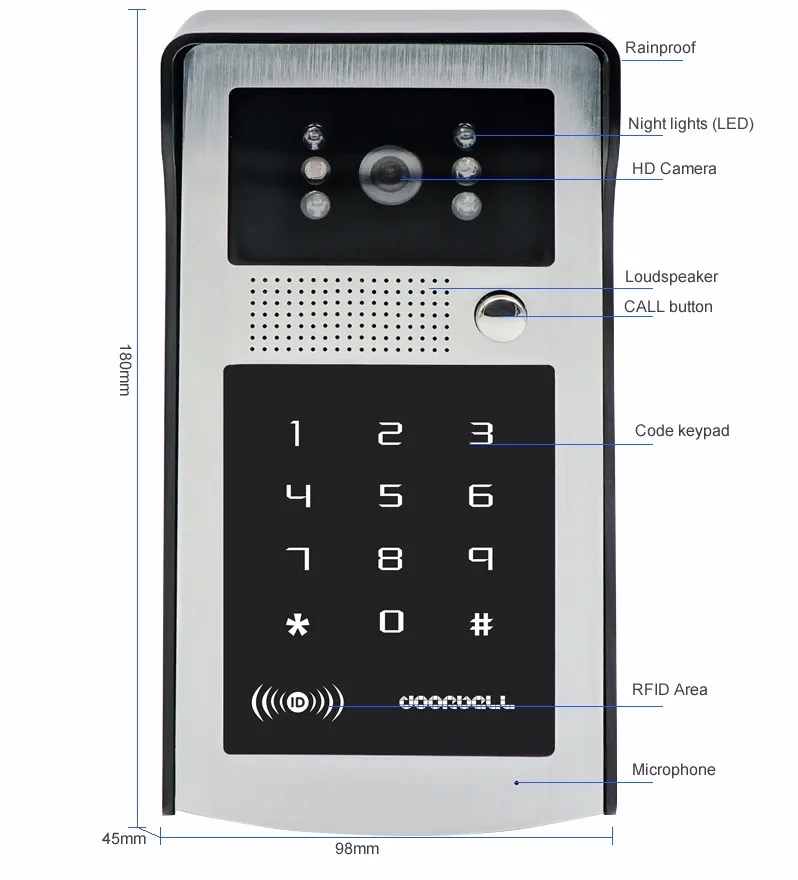

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance More than 2 meters
Working Temperature -35 degrees ~ +55 degrees
Intensity of Illumination 3m-6m night vision
Lens 2.3mm
Dimension 180mm(L) x 98mm(W) x 45mm(H)
Installation Surface mounted
Material Metal panel , ABS rainproof
Net Weight 400g
Model IDS
Indoor Monitor
Screen 9" LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 120s ± 10%
Delay monitoring time 40s ± 10%
Adapter Input AC100 - 240V 50-60HZ
Adapter Output DC15V
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -35 degrees ~ 55degrees
Installation Wall mounted
Dimension 255mm(L) x 155mm(W) x 23mm(H)
Weight 500g
Model 998

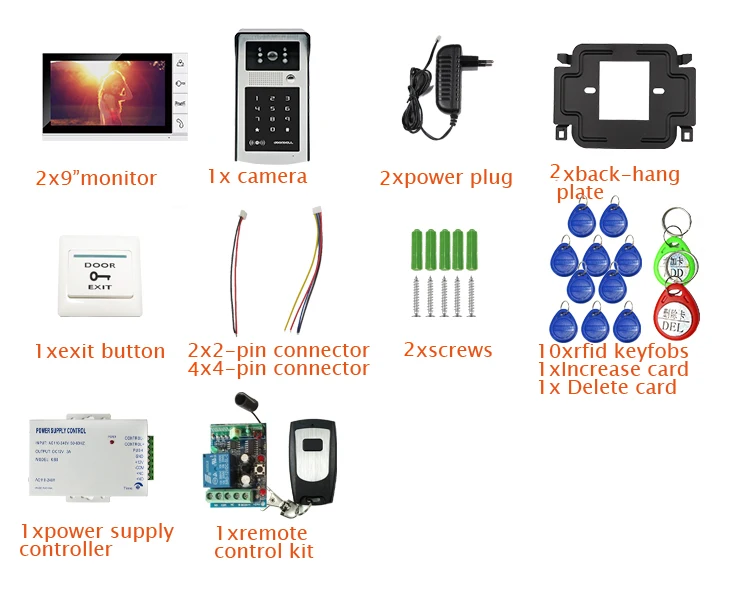

Package

3686-package
